Primare SPA23 4KVM AV Integrated Amplifier
Discontinued
£0.00

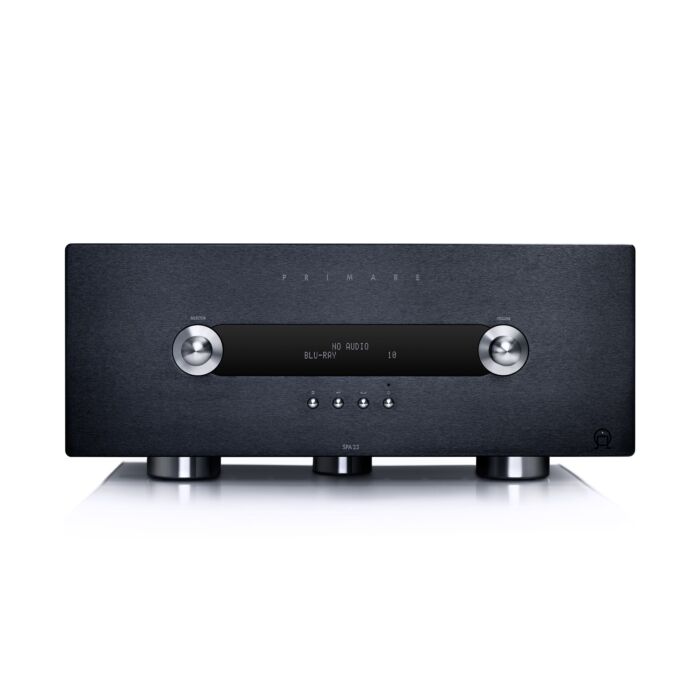

Primare SPA23 4KVM AV Integrated Amplifier
The new SPA23 4KVM AV amplifier is definitively Primare, integrating superior innovation, flexibility and signal purity with an exclusive visual sophistication. Equipped with five identical 120W UFPD amplifiers, HD audio processing, the new 4KVM 4K UHD video module, and a versatile range of analogue and digital audio inputs, the SPA23 will realise the potential of high definition film and music sources.
Who is Primare?
At the heart of Primare's design philosophy lies a simple yet highly effective principle - to combine quality craftsmanship with superior sound and value. Primare is a Swedish manufacturer of audiophile-grade hifi separates, operating as a close-knit team of engineers and music enthusiasts working together to provide the discerning music listener with a sound true to the original source and a design true to Scandinavian elegance.
| Output power |
5 X 120W 8Ω |
| Analogue Inputs |
8 RCA, incl. 7.1 inputs |
| Digital Inputs | 3 RCA, 3 TOS-Link |
| Video Inputs | 6 HDMI, with matrix switching |
| Analogue Outputs | Front (left and right), Centre, Sub, Surr (left and right), Surr back (left and right) |
| Analogue Record Output | 1 RCA (left and right) |
| Zone2 Output | 1 RCA (left and right) |
| Digital Output | 1 RCA, 1TOS-Link |
| Video Output | 2 HDMI, with assignable ARC |
| Zone 2 | 1 RCA (left and right) |
| Modes |
Stereo, Bypass, Party, Dolby Prologic IIx Music, Dolby Prologic IIx Movie, DTS NEO:6 MUSIC, DTS NEO:6 CINEMA |
| Decoding Formats | Dolby Digital, Dolby Digital EX, Dolby Prologic II, Dolby Prologic IIx, Dolby EX, Dolby Plus, Dolby TrueHD, DTS, DTS ES, DTS Neo:6, DTS 96/24, DTS HDMaster Audio, DTS HD High Res audio, MULTI/2 CH PCM/LPCM |
| Sampling rates | 32KHz,44.1KHz,48KHz, 88.2KHz,96KHz,192KHz |
| Video | HDMI HDCP 2.2 with 4K and 3D pass-thru, and HDMI OSD |
| Other | out-/inputs 1 IR Input, 3 12v outputs (triggers), 1 RS232, Fully stabilized SMPS |
| Power Consumption | operate 800W at 1K, 8R, 120W all channels driven |
| Analogue Preamp Data | - |
| THD | <0.005%, 20 Hz-20kHz |
| Signal-to-Noise | -110 dB |
| Frequency Response | 10 Hz-100 kHz, 1dB |
| Input Impedance | 47 KΩ, unbalanced |
| Output Impedance | 47 R unbalanced |
| Power Amp Data | - |
| Output power | Khz, 8R 150W THD+N <1% one channel driven 4R 300W THD+N <1%, AP AUX0025 Filter |
| Output power | Khz, 120W 4/8R THD+N <0.1% all channels drove AP AUX0025 Filter |
| THD | <0.01% 20-20Khz 1W 8R, AP AES17 Filter |
| Signal-to-noise | 80dBr, AP AES17 filter, ref 2.828Vrms. |
| Frequency Response | 20 Hz-20 kHz -0.2dB, 1W 8R |
| Digital Data | - |
| Frequency Response | 20 Hz-20 kHz+ 0.2dB |
| THD+Noise | 0,005% @1 kHz(AES17 filter) |
| Dimensions (WxDxH) | 430 x 385 x 180 mm |
| Weight | 15Kg |
| Colour options | Black or Titanium |
