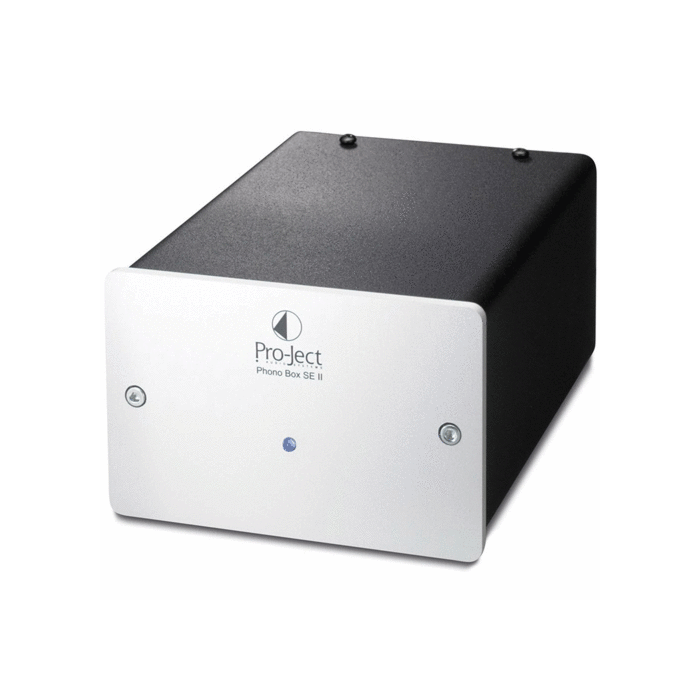

DetailsProject Phono box SE II caters for both moving magnet and moving coil cartridges with equal ease. It's internal circuitry is more sophisticated than it's smaller non-SE brother, whilst the outboard power supply is of much higher quality, resulting in better sound quality. Battery operation can be selected which can yield greater sound quality still. With it's dual mono circuitry and low noise IC's this is a superior phono stage for those who take their vinyl replay seriously.
Specifications Input impedances, MM 120, 220, 340 and 440pf/47kohm Input impedances, MC 17, 18, 20, 22, 69, 100 and 220ohms/120pF Output voltage 300mV/1kHz at 3mV/1kHz (MM input) Gain, MM 40dB Output voltage 300mV/1kHz at 0,3mV/1kHz (MC input) Gain, MC 60dB Noise floor, MM 95dB (100dB - A weighted) Noise floor, MC 75dB (80dB - A weighted) THD MM 0,03% THD MC 0,1% RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,3dB Subsonic filter at 18Hz with 24dB/octave Outboard power supply 16V/1.000mA AC, suitable for your country's mains supply DC operation with battery Power consumption 16V/180mA AC DC power source from ±12 to ±18V DC Dimensions W x H x D (D with sockets) 103 x 72 x 144 (156)mm Weight 1.050g without power supply
