The ESL X concept began in 2019 as part of an intensive review of the QUAD Electrostatic manufacturing facility—a suite dedicated solely to the production of QUAD ESL loudspeakers.

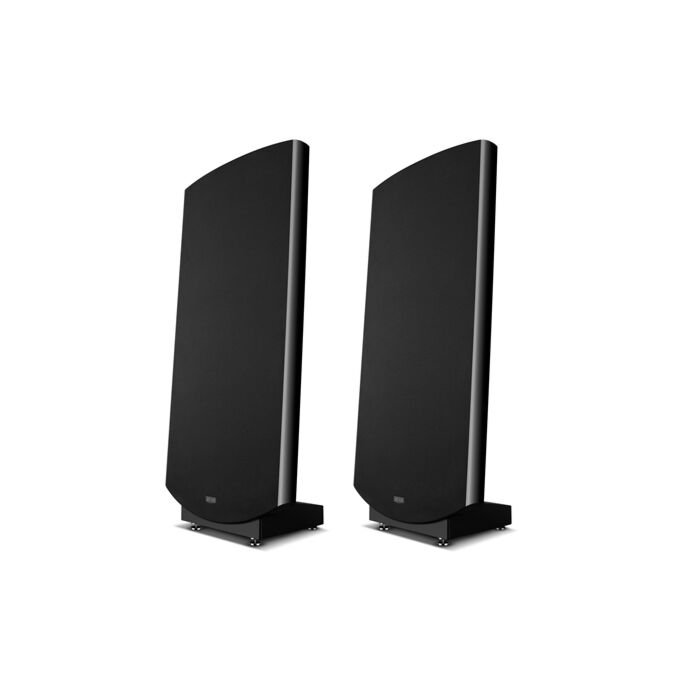

The ESL 2912X is the flagship QUAD electrostatic loudspeaker. Featuring an expanded six-panel design for increased radiating area, higher sound pressure levels, dynamics and extension, the ESL 2912X delivers an immersive listening experience with deeper bass and rich textures, bringing even the most complex music to life. Built for the ultimate audiophile experience, it offers enhanced dynamic range, improved headroom, and a spacious soundstage.

The ESL-X concept began in 2019 as part of an intensive review of the QUAD Electrostatic manufacturing facility—a suite dedicated solely to the production of QUAD ESL loudspeakers. Under the expert leadership of Paul McConville, (a gentleman recognised as the world’s foremost authority in QUAD ESL engineering, with 40 years of experience), every aspect of the original design underwent a comprehensive evaluation and meticulous refinement.

This approach encompassed a thorough analysis of every process, step, technique, material, tool, and jig employed in the construction of a QUAD ESL, with the aim of improving the quality and precision of the electrostatic loudspeaker assembly.

Leveraging techniques such as advanced laser-precision metrology, QUAD undertook an exhaustive review of the foundation of the ESL design. Systematic enhancements were implemented in the processes of spraying, etching, tensioning, and assembly to ensure peak performance. Rigorous upgrades were applied to implement both passive and active components, enhancing the overall system integrity of the then-current ESL 2912 and 2812 models.

The team of QUAD engineers considered the results of this lengthy and time-consuming self-appointed audit so significant that they deemed it worthy of a new model in the lineage of the ESL programme.

It is widely accepted that enhancing an ESL is fundamentally an exercise in building upon existing frameworks through incremental improvements rather than pursuing radical innovations. Consequently, QUAD did not require a complete overhaul of established methods. Nonetheless, these incremental advancements have now culminated in a significant transformation of the 2912 and 2812 models into what is now known as ESL X.

In 1957, QUAD founder Peter Walker shattered conventions with the introduction of the first full-range electrostatic loudspeaker, achieving transient response and clarity then considered impossible.

Subsequent models (ESL-63, ESL988/989, ESL 2805/2905, ESL 2812/2912) each introduced incremental refinements. Critics have long hailed these models for their airy, effortless midrange and natural box-less hear-through qualities.

One would be rightly forgiven for knowing of the ESL but not knowing how the ESL differs from typical loudspeakers. It us correct to begin with the fact that a QUAD ESL is not your typical loudspeaker! Unlike conventional speakers that use moving-coil drivers, the ESL employs a completely different principle: an electrostatic panel.

At the heart of a QUAD ESL are panels containing a diaphragm of fine Mylar film, ten times thinner than a human hair. The Mylar film is coated with a high resistance conductive material and suspended between two perforated metal plates called stators.

This unique diaphragm is incredibly light and therefore dynamically responsive. It is much lighter than any moving-coil driver cone and can therefore respond to signal transients with incredible speed and accuracy.

The Mylar diaphragm is charged up to a constant high voltage exceeding 5.2kV DC. An audio signal is applied across to the two stators to create an alternating electric field, which causes the charged electrostatic Mylar diaphragm to be alternativley pushed and pulled towards them. As a result, the diaphragm vibrates accurately in response to the music signal, and so produces the ultra-pure sound reproduction for which QUAD ESL loudspeakers are well-known.

Due to the diaphragm's lightweight nature and uniform drive across its entire surface, the sound it generates is exceptionally clean, responding accurately to musical transients, and exceptionally low in distortion, particularly intermodulation distortion. This is particularly evident in the midrange frequencies, where human hearing is most attuned.

QUAD's ESL mid-high frequency panels are configured with a "concentric ring” electrode design, initially conceived for the ground-breaking ESL-63. Rather than allowing all sections of the diaphragm to move uniformly, the speaker is meticulously engineered to ensure that the audio signal seems to emanate from a singular point in space. This sophisticated arrangement produces an exceptionally precise stereo image, wherein instruments and vocal performances appear to hover within the auditory environment — akin to being enveloped by the musicians themselves. This point-source characteristic is expertly facilitated by an innovative delay line system, which supplies the outer rings of the stators with gradually delayed iterations of the audio signal.

The intricate details of the manufacturing process contribute significantly to the refinements that are more than audible in the ESL X. For one, the time taken to manufacture a single QUAD ESL panel is extended, therefore the time frame for a full ESL loudspeaker system to be assembled is much more considered. The process is one of extreme care and attention to detail.

However, dig even deeper and QUAD engineers have taken things to the ‘X level’ with some intriguing further enhancements.

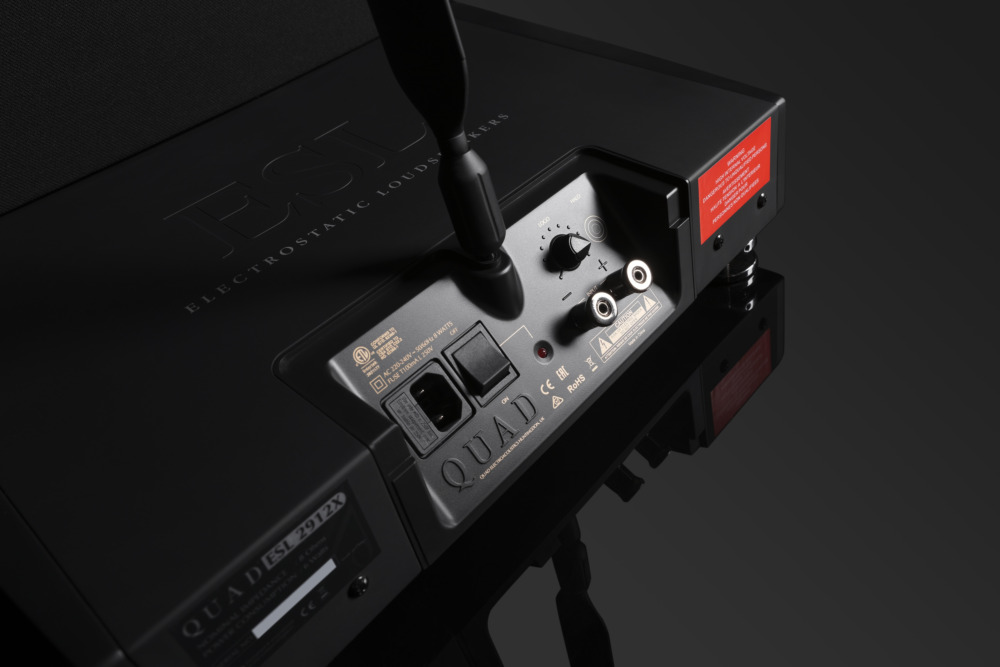

The first technical improvement sees the operational PCB split from a monolithic design into three fully independent modules. The system comprises a High-Voltage Multiplier Module, a Control and Protection Module, and a Low-Voltage Signal Module. Together, these components form an integrated unit designed for optimal performance and reliability. By physically segregating the 5.25 kV multiplier stage from the sensitive low-voltage circuits, QUAD significantly diminish stray high-voltage electric fields. This isolation strategy not only minimises interference and crosstalk but also markedly enhances stability and noise performance. The resulting effect is crystal-clear audio signals that faithfully reveal every nuance, even during powerful musical peaks.

Secondly, it is important to note that, specifically for the ESL X, QUAD has reverted to using UK-manufactured audio transformers. These transformers are of a meticulous custom-specified designed, refined, and supervised in quality control by QUAD’s renowned service team, led by Rob Flain. The transformers are purpose-engineered to improve signal dynamics, particularly within the mid and high-frequency ranges. This results in a sound that is considerably more detailed, and exceptional high linearity is achieved. The wide bandwidth ensures a flat response extending to beyond 18 kHz, creating an effortless sense of airiness and extension. With robust regulation in place, these transformers effectively eliminate flux modulation artefacts when operating at high sound pressure levels.

Ultimately, these transformers significantly enhance mid-high dynamics, sharpen transient attacks, and broaden the perceived depth of the soundstage with superior resolution of micro-dynamics.
