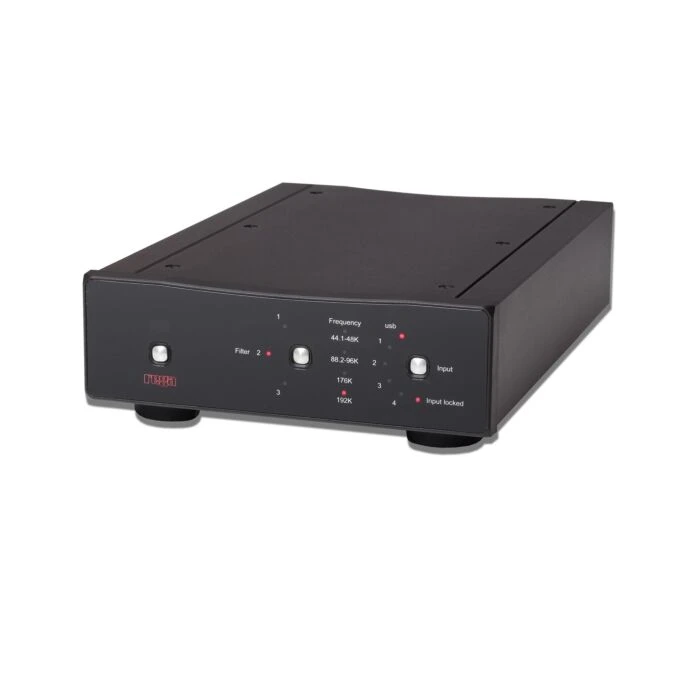

Rega DAC-R Digital Analogue Converter

Rega DAC-R Digital Analogue Converter

Free UK Delivery



Rega are a specialist hifi manufacturer based in Essex, UK and are renowned for developing and constructing some of the most highly regarded turntables (as well as cartridges and tonearms), electronics and loudspeakers available on the hifi market today. Rega were founded in 1973, and have honed their craft over many years of being a leading brand in every category they put a product to.

Rega's DAC-R features a newly developed version of the Rega designed circuit, resulting in the highest possible resolution of digital audio across all of the unit's inputs. This includes a fully asynchronous USB port for the direct playback of high resolution audio file formats stored on a PC. The fascia has been redesigned over the previous model, now allowing for a much clearer indication of the frequency of the input, while new and improved optical TOSLink input connections now accommodate thicker quality cables than before.

Two Wolfson WM8742 DAC chipsets sit parallel to each other with a robust, Rega-specific aluminium and steel case housing. Inputs of the DAC-R include the quality, isolated asynchronous USB, two isolated co-axial and two TOSLink SPDIF inputs. The DAC-R has been designed to work flawlessly with other Rega hifi components, but will operate as a superior DAC in any system of similar callibre.



DAC Chipset 2 x Wolfson WM8742
Frequency Response (100KΩ load) Filter 1 selected
 Low data rate  44.1/48KHz =
10Hz -0.05dB to (44.1K)
20.02KHz (48K)
21.7KHz -0.03dB
 Medium data rate 88.2/96KHz =
10Hz -0.05dB to (88.1K)
28.7KHz (96K)
31.2KHz -3dB
 High data rate 176.4/192KHz =
10Hz -0.05dB to (176.4K)
44.1KHz (192K)
47.7KHz -3dB
 Maximum output level  2.175V into 100KΩ load
 Bit resolution (all inputs) 16 to 24bit
 Supported data rates 32,
 Total Harmonic Distortion all inputs (24bit 96KHz) = 0.006% @ 1KHz
 Signal to Noise Ratio -105dB
(relative to maximum output level
with a 100Hz to 22KHz bandwidth)
 Digital Inputs USB Asynchronous Isolated
(24bit 44.1/48/88.2/96/176.4/192KHz)

Input 1 Optical/Toslink
(24bit 32/44.1/48/88.2/96/176.4/192KHz)

Input 2 Optical /Toslink
(24bit 32/44.1/48/88.2/96/176.4/192KHz)

Input 3 Isolated 75Ω Co-axial
(24bit 32/44.1/48/88.2/96/176.4/192KHz)

Input 4 Isolated 75Ω Co-axial
Power   230v/7.6W
Dimensions in cm W 21.5 x D 32 x H 8
Weight 4.0kg
