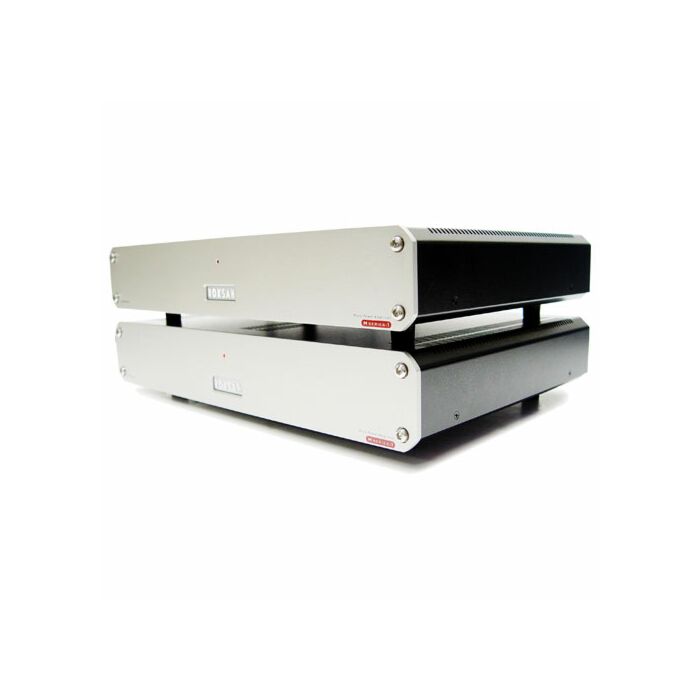

Roksan Caspian Mono Amplifier (M series -1)

Roksan Caspian Mono Amplifier (M series -1)

Sorry, This product is no longer available

Description

Details

With 100W of power on tap into 8 ohms, the Roksan Caspian Mono Amplifier is a hugely powerful and controlled mono power amp with deep, extended tuneful bass, clear natural midrange and crystal clear high register. A symmetrical bi-polar transistor design with fully complimentary PNP/ NPN output devices, it has a very low noise differential front end stage with class A drivers biasing the class AB output stage. A huge toroidal transformer operates with twin bridge rectifiers and smoothing capacitors for complete separation of the positive and negative supply rails, giving superb low hum and noise performance. Full output stage monitoring gives total protection for your loudspeakers . Ideally used with the Roksan Caspian pre-amplifier, 0r can be used in pairs for a high performance stereo power amplifier system.
Specification

Input Impedance     38 k
Input Sensitivity     700mV RMS
Signal Inputs     Signal In x1
Signal Outputs     Chain Output x1
Power Outputs     Loudspeaker x2
Output Power     100 Watts, into 8Ω
175 Watts, into 4Ω
250 Watts, into 2Ω
330 Watts, into 1Ω
(Note: Low impedance loads driven continuiously at high power may trip the amp into protection mode)
Power Supply     350VA Ultra Low Noise Toroidal Transformer
Current Output     80 Amps Peak to Peak
Damping Factor     400 (8Ω)
Frequency response     -3dB, <2Hz - >150kHz
Gain     30.7dB
