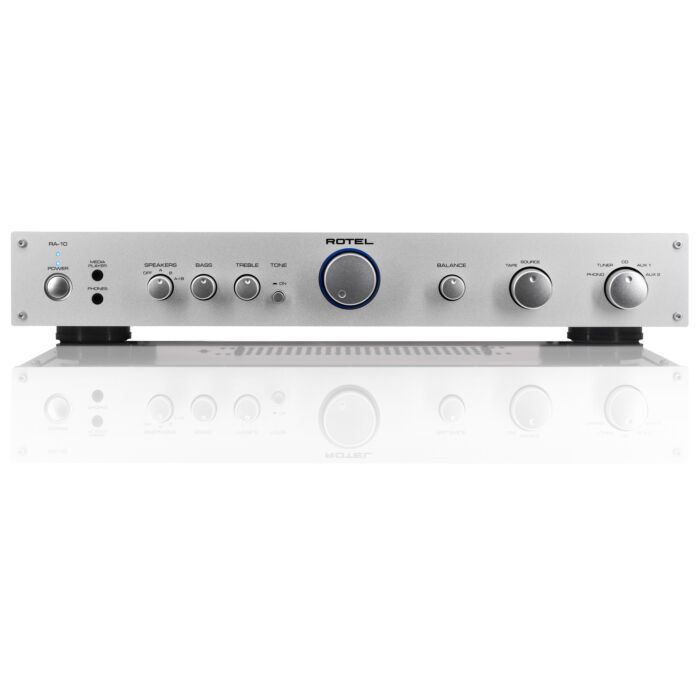

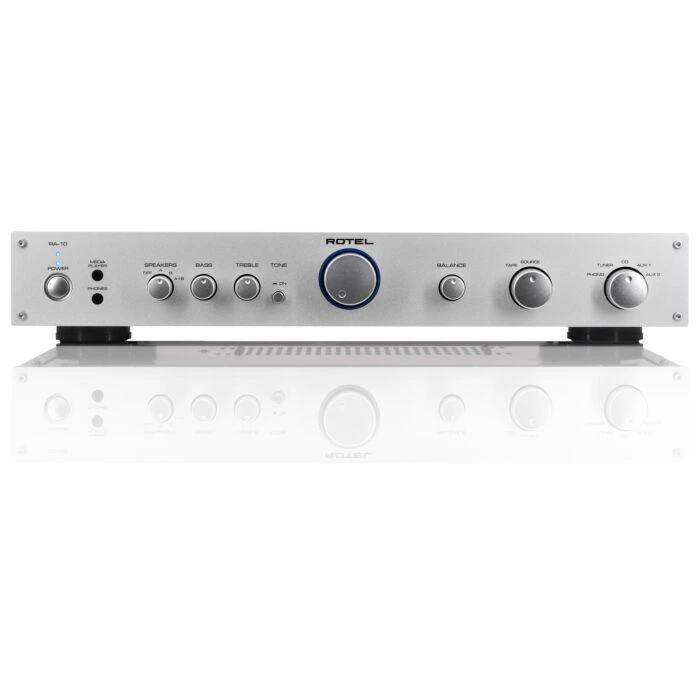

Rotel RA-10 Integrated Amplifier

Rotel RA-10 Integrated Amplifier

Sorry, This product is no longer available




Hifi amplifier manufacturing companies sometimes go a little over-board with excellent features and versatility, and neglect the most important part of the amplifier's existence - to provide a great sound. The RA-10 is a prime example of how Rotel retain audio quality at the forefront of their entire engineering, design and manufacturing process. The RA-10 offers each channel 40 watts of power and features four analogue line level inputs, a phono input and easy to work integrated amplifier controls for adjusting the input or volume.
The RA-10 may be easy to get along with and simple to operate, but don't let it's nice-guy appearance fool you. It's a serious, high-performing amplifier that utilises half of a century's worth of Rotel's audio expertise to optimise your source audio for the best possible music reproduction. The RA-10 delivers a level of detail and effortless dynamic to your favourite music and rivals many models in much higher price brackets than its own.


Model  RA-10
 Continuous Power Output 40Watts/ch (20-20kHz, < 0.03%, 8Ω)
Total Harmonic Distortion (20Hz-20kHz, 4:1) < 0.03% at rated power
 Intermodulation Distortion (60 Hz:7 kHz, 4:1) < 0.03% at rated power
 Frequency Response Phono Input: 20Hz - 15kHz, ±0.3dB
Line level Input:  10Hz - 40kHz, ±1dB
 Input Sensitivity / Impedance  Phono Input: 2.5mV / 47 k Ω
 Line Level Input: 150mV / 24 k Ω
 Input Overload Phono Input: 180mV
Line Level Input: 5V
 Preamp Output & Impedance  1V / 470Ω
 Tone Controls; Bass/Treble  ±6 dB at 100Hz / 10kHz
 Signal to Noise Ratio (IHF “A” weighted) Phono Input: 80dB
Line Level Input: 100dB
Power Requirements 120V, 60Hz (USA) 230V, 50Hz (Europe)
Power Consumption 220 watts
Standby Power Consumption 0.5 watts
Dimensions (W x H x D) 430 x 72 x 342mm (17 x 3 5/8 x 13 1/2 ins)
Weight 5.9kg
