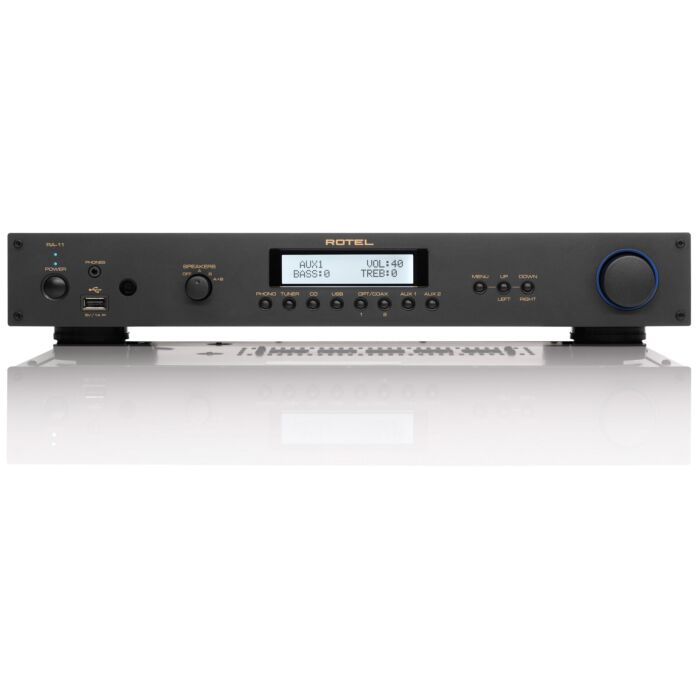

Rotel's RA-11 shares a number of features with its bigger brother, the RA-12 but is slimmer in shape and not quite as powerful. Similarly to the RA-12, the RA-11 has been designed with a phenomenal level of care and attention to detail, using only the most precisely chosen components to ensure that music being delivered from the RA-11 is done so with as much clarity and dynamic superiority as possible.
The RA-11 also utilises the same high-end Wolfson WM8740 24bit/192kHz DAC found within the RA-12, as well as the same number of inputs; five conventional analogue inputs and four S/PDIF digital inputs - as well as an Apple approved USB input for directly playing music from your favourite Apple devices. The Rotel RA-11 is a highly capable amplifier that rivals many alternative models in much higher price-ranges.
| Model | RA-11 |
| Continuous Power Output | 40W per channel (20-20kHz, < 0.03%, 8 ohm) |
| Total Harmonic Distortion (20Hz-20kHz, 4:1) | <0.03% at rated power |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% at rated power |
| Frequency Response | Phono Input: 20Hz - 15kHz, ±0.3dB Line level Input: 10Hz - 100kHz, ±1dB |
| Input Sensitivity / Impedance | Phono Input: 2.5mV / 47 k Ω Line Level Input: 150mV / 24 k Ω |
| Input Overload | Phono Input: 180mV Line Level Input: 5V |
| Preamp Output & Impedance | 1V / 470Ω |
| Tone Controls; Bass/Treble | ±4 dB at 100Hz / 10kHz |
| Signal to Noise Ratio (IHF “A” weighted) | Phono Input: 80dB Line Level Input: 100dB |
| DIGITAL SECTION: | |
| Frequency Response | 10Hz-95kHz ±3.0dB (MAX) |
| Signal to Noise Ratio (IHF “A” weighted) | 100dB |
| Input Sensitivity/Impedance | 0 dBfs/75V |
| Pre-out/Impedance | 1.2V/470V (at -20dB) |
| Decodable Front USB/iPod Digital Signals | AAC (m4a), WAV, MP3, WMA (up to 48K 16bit) |
| Coaxial/Optical PCM | LPCM |
| File Formats | Real Audio, MP3, OGG Vorbis, WAV, AIFF & AU |
| GENERAL: | |
| Power Requirements | 120V, 60Hz (USA) 230V, 50Hz (Europe) |
| Power Consumption | 220 watts |
| Standby Power Consumption | 0.5 watts |
| Dimensions (W x H x D) | 430 x 72 x 342mm (17 x 3 5/8 x 13 1/2 ins) |
