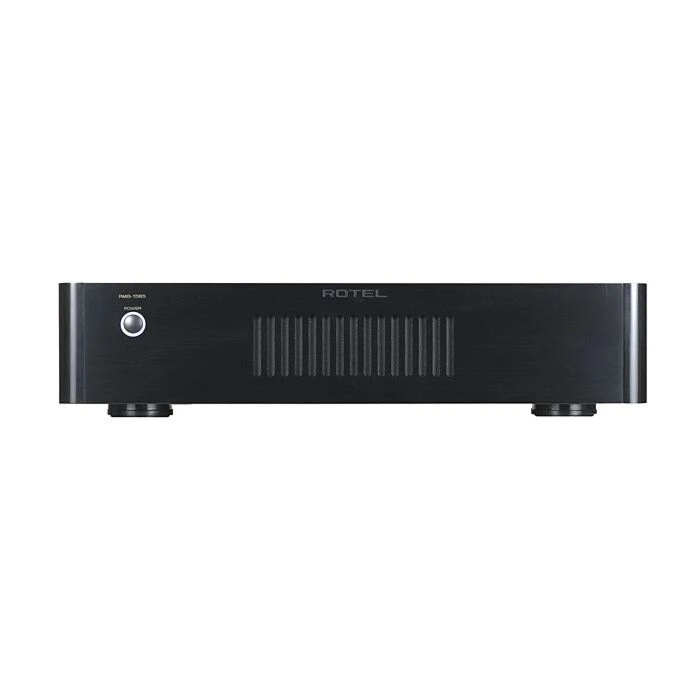

Rotel RMB-1565 Multichannel Power Amplifier

Rotel RMB-1565 Multichannel Power Amplifier

Sorry, This product is no longer available



This listing is for the latest version of the RMB-1565 (the 'Mark 2). Rotel's RMB-1565 has been designed around the same superlative construction philosophy as the RMB-1575 with its Class D design, offering slightly less in terms of output wattage (but still providing an impressive 5 x 100 watts per channel into 8 ohms). Designed to offer an immersive and dynamic sound for medium-to-larger home cinema rooms.

As with its bigger sibling, the RMB-1565 will double its output, should it encounter more difficult, lower impedance loads - thereby delivering 5 x 200 watts into 4 ohms.

It features a number of the features found within Rotel's custom installation range, such as 12 volt triggers and 'U Height' dimensions required from a premium quality power amplifier of today.



 Power Output
All Channels Driven
100 watts x 5/ch (20-20 kHz, 0.03% THD, 8 ohms)
200 watts x 5/ch (20-20 kHz, 0.03% THD, 4 ohms)
 THD (20-20,000Hz) 8 ohms, all channels driven < 0.03%
IM Distortion  < 0.03%
 Damping Factor (8 ohms) 400
 Gain 27.2 dB
 Input Sens. / Impedance 1.2 V / 8.3 k ohms
 Frequency Response (+/-1 dB)  10 - 40 kHz (+3dB)
 Signal to Noise Ratio (IHF A) 109dB
 Power Consumption 280 Watts
 Dimensions (W x H x D) mm 431 x 99 x 339 mm
Dimensions (W x H x D) in. 17 x 4 x 13 3/8 in
Front Panel Height 2U / 88.1mm / 3 4/8 in
Weight 6.0kg / 13.23 lbs
