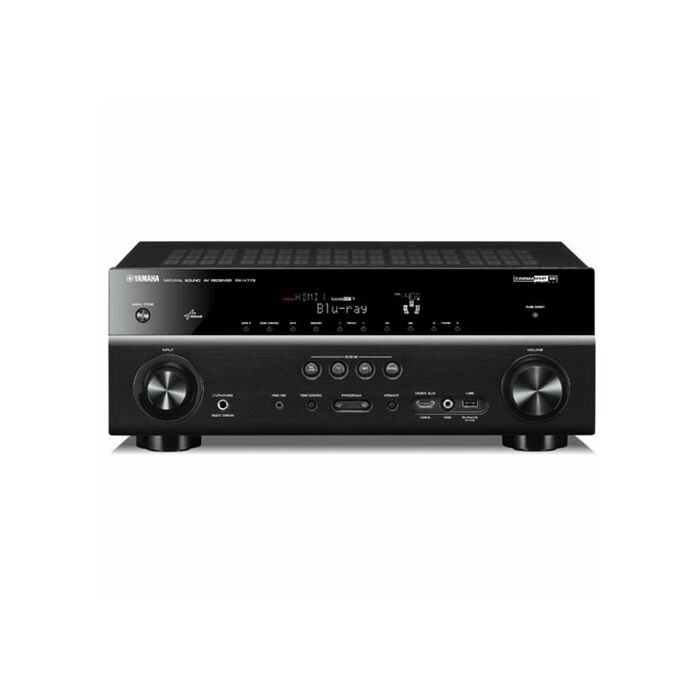

Yamaha RXV773 AV Receiver

The new Yamaha RXV773 AV Receiver demonstrates total commitment to audio and video technology improvement. With 7 x 160W power amplifier for powerful music and movie soundtrack delivery all loudspeakers and room sizes can be catered for. Pure direct mode gives an improvement when listening in stereo by putting all none required circuitry into sleep mode.

6 in 2 out HDMI's are all to the latest 1.4 standard with the ability to decode Dolby True HD and DTS HD Master Audio soundtracks in great clarity. 4K video pass through makes the RX-V773 future proof as the latest high resolution video material becomes available. Network compatible to allow all of your music files stored on the network to become available to the RXVV773 - additionally Airplay functionality allows wireless streaming from any iDevice. Using AV Controller software, any iDevice can control this receiver.

Set-up is accomplished using Yamaha's well repsected YPAO room correction software for the best surround sound experience possible.



Amplifier Section    Channel    7.2
Rated Output Power (1kHz, 1ch driven)    160W (4 ohms, 0.9 % THD [European Model])
Rated Output Power (20Hz-20kHz, 2ch driven)    95W (8ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)    160W (8ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms)    140/180/210/250W
Surround Sound Processing    CINEMA DSP    Yes (3D)
DSP Programs    17
Compressed Music Enhancer    Yes
Virtual Presence Speaker    Yes
Dialogue Lift    Yes (no presence speakers required)
Dolby TrueHD    Yes
Dolby Digital Plus    Yes
Dolby Pro Logic IIx    Yes
DTS-HD Master Audio    Yes
Dialog Level Adjustment    Yes
Audio Features    Pure Direct    Yes (with video on mode)
YPAO multi-point measurement    Yes (R.S.C)
Adaptive DRC (Dynamic Range Control)    Yes
Initial Volume & Maximum Volume Setting    Yes
Bi-amp capability    Yes
Audio Delay    Yes (0-500 ms)
192kHz/24-bit DACs for all channels    Yes (Burr-Brown)
Video Features    HDMI 3D passthrough    Yes
HDMI Audio Return Channel    Yes
HDMI upscaling    Yes (Analogue to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync    Yes
4K Pass-through & 4K Upscaling    Yes
Connectivity    HDMI Input/Output    6 (front 1) / 2 (Simultaneous)
HDMI CEC    Yes (SCENE, Device Control)
USB Input    iPod/iPhone/iPad, USB Memory, Portable Audio Player
Network Port    Yes
Front AV Input    HDMI/USB/Composite
Digital Audio Input/Output: Optical    2 / 0
Digital Audio Input/Output: Coaxial    2 / 0
Analog Audio Input/Output    5 / 1
Phono Input    Yes
Component Video Input/Output    2 / 1
Composite Video Input/Output    5 (front 1) / 1
Preout    7.2ch
Headphone Output    1
AirPlay    Yes
Tuner Section    FM/AM Tuner    Yes
User Interface    On-screen display    Graphical User Interface
SCENE    SCENE (4 sets)
App Control    Yes (iPhone/iPad/Android phone/tablet)
Web Browser Control    Yes
Remote Control Unit    Yes (Preset, Learning)
Zone Control    Zone 2 Audio Output    Line output
Powered Zone    Zone 2
+12V Trigger Output    1
Remote (IR) Input/Output    1 / 1
Party Mode    Yes
General    Standby Power Consumption (IR only)    ≤0.1W
Auto Power Down    Yes
Dimensions (W x H x D)    435 x 171 x 368 mm; 17-1/8” x 6-3/4” x 14-1/2”
Weight    10.8 kg; 23.8 lbs.
ECO mode    Yes
