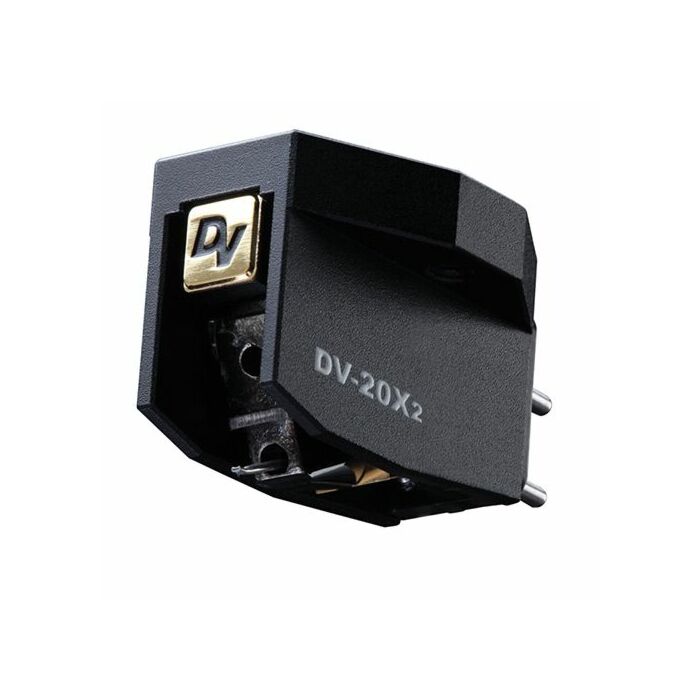

For more than 30 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. The new Dynavector DV-20X2 Moving Coil Cartridge moves the game on yet again.
Privileged to feature a solid aluminium body that is similar to the legendary XX-2. The cantilever is a 6mm length of hard aluminium pipe that features a Micro-Ridge stylus. Magnetic flux damping and softened magnetism, in conjunction with powerful neodymium magnets, allow the 20-XH a hearty, yet healthy output of 2.8mV that is ideal for a majority of MM inputs. The 20-X2 has an output of 0.3mV which is suited to a large array of Moving Coil (MC) inputs.
Both high and low versions of their 20X2 are available ensure for the optimum end result. The high output model is most suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.
-
|
SPECIFICATIONS:
Type High/Low output moving coil cartridge with flux damper and softened magnetism Output Voltage 2.8mV / 0.3mV (at 1KHz, 5cm/sec.) Channel Separation 25 dB (at 1KHz) Channel balance 1.0 dB (at 1KHz) Frequency response 20 - 20,000Hz (± 2dB) Compliance 12 x 10-6 cm/dyn Tracking force 1.8 - 2.2grams DC resistance 150 ohms / 5 ohms Recommended load resistance 1Kohms / 30 ohms Cantilever 6mm length, hard aluminium pipe Stylus Micro-Ridge Weight 8.6 grams |
-
-
