Dynavector 10x5 Mk2 Moving Coil Cartridge
Free UK Delivery

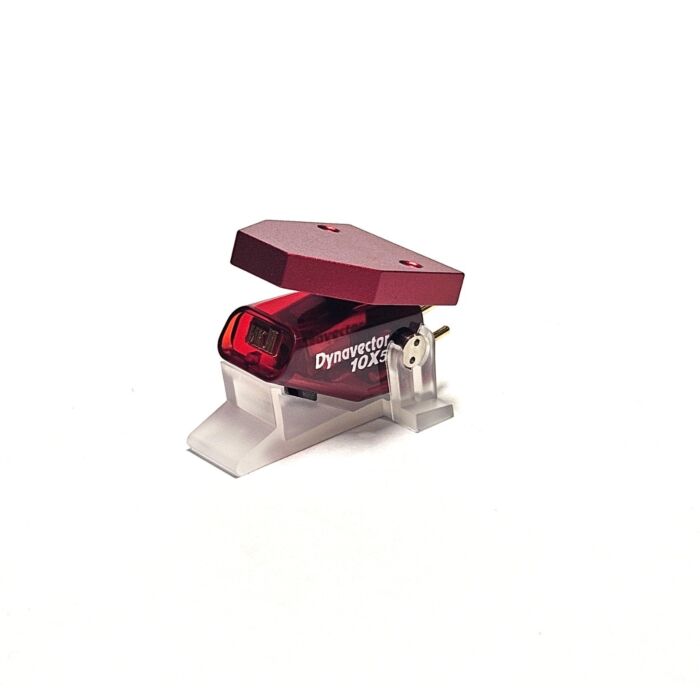

Dynavector 10x5 Mk2 Moving Coil Cartridge
The 10×5 MkII is a 2.8mV High-Output Moving coil cartridge, meaning that you do not require a moving coil phono stage to use it. This is a very desirable option for anyone looking to improve on their moving magnet cartridge without the additional cost of a new phono stage. The cartridge uses a Nude "Shibata III" stylus
Key Features
- High and Low Output option
- No complicated MC loading is required for High output version
- Dynavectors exclusive Magnetic Flux Dampening Design
- Improved Nude Diamond Shibata 3 Stylus Profile
- Powerful rare-earth neodymium magnets
- Unrivalled coil winding technology with increased coil windings
A number of exclusive technologies such as Softened Magnetism and powerful neodymium magnets, Magnetic Flux Damping & a new hardened cantilever material help the 10x5 MKII ensure correct & stable tracking ability even on the most difficult albums.
Legendary Dynavector coil-winding technology uses the finest wire and has enabled Dynavector to minutely increase the coil windings to reduce impedance to 150ohms whilst retaining a hearty 2.8mV of output. Mounting the cartridge to the tonearm is achieved by bolting the rigid, aluminium head-block to the headshell via supplied bolts & key.
Shibata shape distinguishes itself by having the necessary small contact surface at the horizontal level for playback of the ultra-high frequencies found on CD-4 records. At the vertical level, the special shape of the stylus gives a wider contact surface than is the case with either spherical or elliptical styli. This means that a Shibata-shaped stylus, in spite of its high-frequency capabilities, gives less record wear than the traditional stylus shapes. The more complex shape of the Shibata allows a long vertical line of contact to be achieved with the groove wall, this gives you improved high frequency and less wear on both your record and the stylus itself.
Mounting the cartridge to the tonearm is achieved by a rigid red aluminium head block that provides a stable platform for the cartridge along with easy and secure fixing to the tonearm.
This cartridge is often on demo in our Hereford shop and can be listened to on any of our demo turntables on request or if you wish to bring your own turntable for a listen, that can be arranged.
Who is Dynavector?
Dynavector is one of the world’s leading manufacturers of high-performance moving coil cartridges and has been at the top of its game for over four decades. Using their patented magnetic flux damping and softened magnetism mechanisms, Dynavector’s range of cartridges is certainly innovative. Hearing a standard moving magnet cartridge and Dynavector’s moving coil cartridges you’ll be blown away by the difference in sound.
From their entry-level, MC 10X5 cartridge to the top-of-the-range DRT XV-1t, Dynavector cartridges can help take your listening experience to the next level. Their high-output models are designed to work with MM inputs, perfect for those just starting their upgrade journey in the world of vinyl.
Founded in the mid-1970s by Dr Tominari in Tokyo, Dynavector is committed to delivering the best quality sound from vinyl. As a former physics professor at Tokyo University, Dr Tominari had a lifelong interest in music and his scientific background helped him to design, develop and produce truly innovative products. This has continued to this day and helped Dynavector become synonymous with great-sounding vinyl.
Type | High & Low output moving coil cartridge with flux damper and softened magnetism |
Output Voltage | 2.8mV (at 1KHz, 5cm/sec.) |
Channel Separation | 25 dB (at 1KHz) |
Channel balance | 1.0 dB (at 1KHz) |
Frequency response | 20 - 20,000Hz (± 2dB) |
Compliance | 12 mm/N |
Tracking force | 1.8 - 2.2 g |
Impedance | 150 ohms |
Recommended load impedance | > 1000 ohms |
Cantilever | 6mm length hardened aluminium pipe |
Stylus tip | Nude Diamond "Shibata III" Line Contact |
Weight | 7.5 g |
