Bowers & Wilkins CCM663RD Reduced Depth In-Ceiling Loudspeakers

Free UK Delivery

In Stock On DemoClick to book a demo

Special Price £599.00 Regular Price £800.00
Payments
Or
Loading payment button...



Key Features

  • 2 way in-ceiling speakers
  • QuickDogs plug and play mounting
  • 1" in Nautilus™ swirl loaded aluminium dome tweeter
  • 6" in blue Kevlar® cone bass/midrang
  • Recommended amplifier 25w - 100W per channel
  • 5 Year warranty

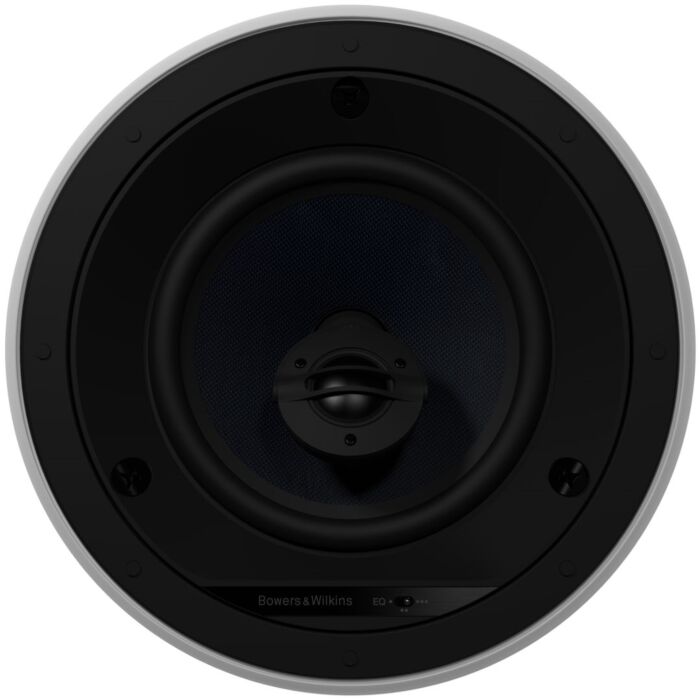

Bowers & Wilkins CCM663RD In-Ceiling Loudspeakers



The CCM663RD builds upon the exemplary quality and construction of the original CCM663 to offer a superlative in-ceiling speaker solution, ideal in both music and home theatre applications. Comprising of a high-quality 16cm (6 inches) , deep blue Kevlar cone, working in tandem with a 25mm (1 inch) Nautilus swirl-loaded aluminium dome tweeter. The Kevlar material allows for a rigid yet light performance, this results in large amounts of air and subsequently sound to be created with precision and speed. The tweeter is rotatable and an EQ switch allows the listener to manipulate the sound depending on the acoustic environment or listening preference. These high-quality components sit within a rigid die-cast chassis.

The CCM663RD can take up to 130W of power, while installation is prompt and simple thanks to Bowers & Wilkins revolutionary QuickDogs installation system. White, paintable grilles included. Square grilles available on request.

The Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

RD stands for Reduced Depth – so this speaker will fit into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fit QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker. The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminium dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.



Sold as pairs.

Who are Bowers and Wilkins?

Bowers & Wilkins are a world-famous name within the hifi community and industry, has developed a vast number of loudspeaker models throughout the years and, winning the hearts of audio lovers and critics alike. B&W specialise in maintaining the balance between sound quality and price point, meaning that value for money and true quality is always at the forefront of the company's design process.  Their range of in ceiling, in the wall and outdoor speakers follow this design philosophy and often incorporate truly innovative quirks and features.





Description
2-way in-ceiling system
Drive Units

1x Ø25mm (1 in) Nautilus™
swirl loaded aluminium dome tweeter
1x Ø150mm (6 in) blue Kevlar® cone bass/midrange

Frequency Range (-6dB)
35Hz – 50kHz
Recommended Amp Power
25W – 100W
Sensitivity SPL (2.83V, 1m)
86dB (2.83V, 1m)
Impedance Nominal (min) 8Ω (4.8Ω minimum)
Frame diameter
Ø240mm (9.4 in)
Cut-out diameter Ø202mm (8 in)
Depth behind surface 92mm (3.6 in)
Protrusion 7mm (0.3 in)
Pre-mount Kit
PMK C6
Back Box BB6W or BB125C
