Bowers & Wilkins CCM7.5 S2 In-Ceiling Loudspeaker

Free UK Delivery



Sold Individually - Custom install only

£849.00
Payments
Or
Loading payment button...



Key Features

  • 2-way in-ceiling system
  • 1"in Carbon Dome high-frequency
  • 7"in Continuum cone mid/bass
  • Recommended amplifier power 25W-150W into 8Ω
  • 5-Year warranty

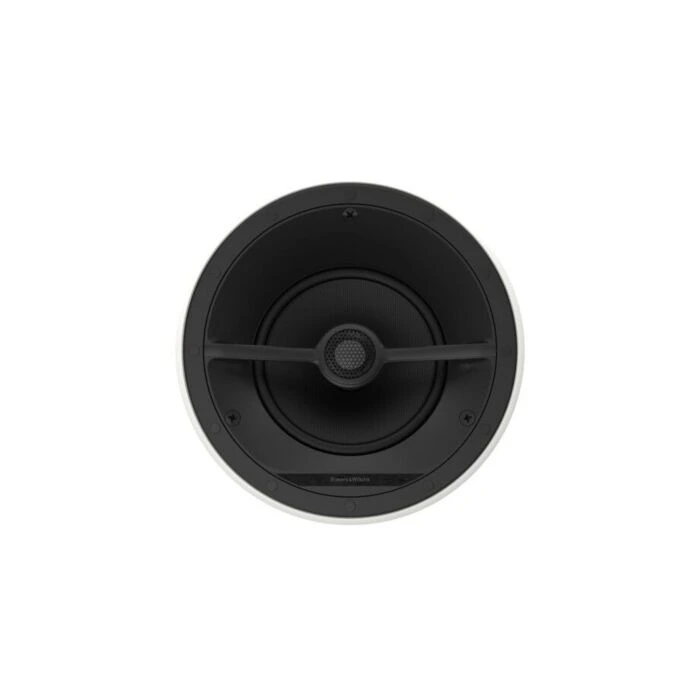

Bowers & Wilkins CCM7.5 S2 In-Ceiling Loudspeaker

The Bowers & Wilkins CCM7.5 S2 is tweaked from the previous CCM7.5 In-Ceiling. The new improved version can be used as the left, centre, right and rear-channel rear speakers in your own home theatre system. The new configuration includes a 25mm (1in) Carbon Dome Tweeter and a 180mm (7in) Continuum cone mid/bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener ensuring they hear the correct balance of sound. Thanks to Bowers & Wilkins's unique QuickDogsTM fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.

For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality, there is our Reference Series.

See nothing, hear everything


Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, centre, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogsTM fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.





Who are Bowers & Wilkins?

Bowers & Wilkins are a company that needs very little introduction, having been constructing some of the world's most critically acclaimed loudspeaker and headphone models for half of a decade. Starting at the entry-level 600 S2 series, through to the new 700 S2 series audiophile range, 800 Diamond series and flagship Nautilus model. These different series of loudspeakers have been praised as the superior listening experience in both two-channel hifi/music listening and in multi-channel home theatre applications, having claimed a vast multitude of awards in both categories. A Bowers speaker can be easily recognised by its iconic styling and its new silver 'continuum' cone, present throughout the 600, 700, 800 & Formation ranges. In April 2019 Bowers and Wilkins introduced their newest "wireless" range called "Formation", giving you a true, high-quality music experience when it comes to streaming music wirelessly.

Technical features

Carbon Dome tweeter

Continuum mid/bass

Description  2-way in-ceiling system
Drive units

1x ø25mm (1in) Carbon Dome high-frequency

1x ø180mm (7in) Continuum cone mid/bass

 Frequency range (-6dB) -6dB at 25Hz - 33kHz
 Frequency Response  -3dB 32Hz - 28kHz ±3dB
 Sensitivity  90dB spl (2.83Vrms, 1m)
 Harmonic distortion

 2nd and 3rd harmonics (90dB, 1m)

<1% 70Hz - 33kHz

<0.5% 100Hz - 28kHz

Nominal impedance   8Ω (minimum 4.8Ω)
 Recommended amplifier power 25W - 150W into 8Ω on unclipped programme
Frame diameter  290mm (11.4in)
Depth   (behind surface) 128mm (5in)
Cut-out diameter  254mm (10in)
Protrusion 8.5mm (0.33in)
PMK PMK C8
Back box BB 6C
Square grille option GR68SQ
Net weight  3.1kg (6.83 lb)
Finishes Grille: White
