Dynavector DV-20X2 MC Cartridge

Free UK Delivery

In Stock On DemoClick to book a demo

£845.00
Payments
Or
Loading payment button...

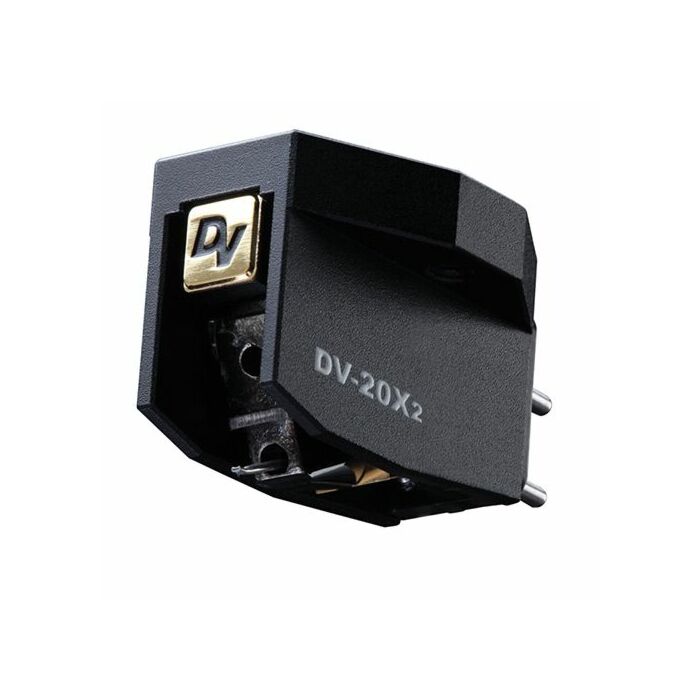

Dynavector DV-20X2 MC Cartridge

The Dynavector DV-20X2 Moving Coil Cartridge features a solid aluminium body, which is similar to the legendary XX2. The 6mm cantilever is housed on a hard aluminium pipe which features a Micro-Ridge stylus that offers a wide dynamic range and low distortion.



  • Available in both High and Low output options
  • Rigid magnet construction from the XX-2Mk2
  • Dynavectors exclusive Magnetic Flux Dampening Design
  • Unrivalled coil winding technology with increased coil windings
  • Micro-ridge stylus



Magnetic flux damping and softened magnetism, in conjunction with powerful neodymium magnets, allow the 20-XH a hearty, yet healthy output of 2.8mV that is ideal for a majority of MM inputs. The 20-X2 has an output of 0.3mV which is suited to a large array of Moving Coil (MC) inputs.

Both high and low versions of their 20X2 are available to ensure the optimum end result. If you have valve preamplifiers or electronics which have Moving Magnet inputs, the High Output model will be most suited for the system. Compared to the Low Output model, which is superb with dedicated moving coil inputs.

The Micro Line stylus on the 20X2 has a unique shape that is highly polished. This design has a sharper edge and a microscopic curvature that plays the record groove walls, which allows better high-frequency reproduction, lower distortion, depth, and imaging. With correct alignment and set up the sound from the cartridge is spectacular, offering an easy listening, accurate sound. The 20X2 is available for demo in our Hereford store on either one of our demonstration turntables or on your own machine. Just contact us to arrange a listen.



Who is Dynavector?

Dynavector is one of the world’s leading manufacturers of high-performance moving coil cartridges and has been at the top of its game for over four decades. Using their patented magnetic flux damping and softened magnetism mechanisms, Dynavector’s range of cartridges is certainly innovative. Hearing a standard moving magnet cartridge and Dynavector’s moving coil cartridges you’ll be blown away by the difference in sound.

From their entry-level, MC 10X5 cartridge to the top-of-the-range DRT XV-1t, Dynavector cartridges can help take your listening experience to the next level. Their high-output models are designed to work with MM inputs, perfect for those just starting their upgrade journey in the world of vinyl.

Founded in the mid-1970s by Dr Tominari in Tokyo, Dynavector is committed to delivering the best quality sound from vinyl. As a former physics professor at Tokyo University, Dr Tominari had a lifelong interest in music and his scientific background helped him to design, develop and produce truly innovative products. This has continued to this day and helped Dynavector become synonymous with great-sounding vinyl.



Type     High/Low output moving coil cartridge with
flux damper and softened magnetism
 Output Voltage 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
 Channel Separation 25 dB (at 1KHz)
 Channel balance 1.0 dB (at 1KHz)
                    Frequency response                    20 - 20,000Hz (± 2dB)
 Compliance   12 x 10-6 cm/dyn
 Tracking force 1.8 - 2.2grams
 DC resistance 150 ohms / 5 ohms
Cantilever
6mm length, hard aluminium pipe
 Stylus   Micro-Ridge
 Weight   8.6 grams
