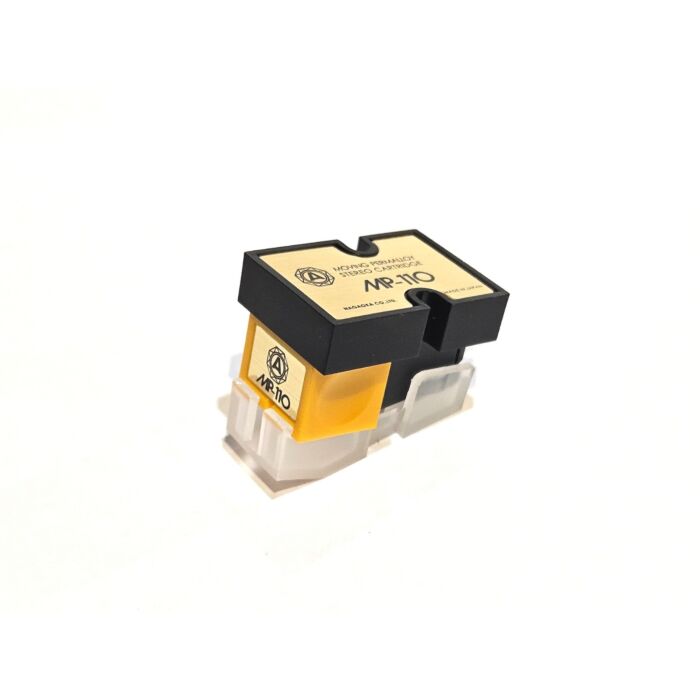

Nagaoka MP-110 Cartridge

Nagaoka MP-110 Cartridge

Free UK Delivery

In Stock


Nagaoka are a well-established and highly experienced manufacturer of quality phono cartridges, having designed and engineered styli, cartridges and vinyl record accessories since 1940. With over 70 years in the industry, Nagaoka have become renowned for their superior attention to detail and craftsmanship, all the while retaining the design philosophy of putting the listener as close to the performance as possible.

All high-precision micro-components within each cartridge are built by Nagaoka specifically within their own factory, this includes the diamond tips, the specialist samarium cobalt magnets, right down to the cantilevers.

Replacing the classic Nagaoka MP-11 phono cartridge, the new Nagaoka MP-110 improves on the MP11's performance by the use of new materials and the use of a SuperFine polished elliptical diamond bonded stylus mounted on a lightweight aluminium alloy cantilever. High output is assured by the use of a powerful samarium cobalt magnet, making any standard MM phono input suitable for use with the Nagaoka MP110.

Output Voltage 5,0 mV (5 cm/sec)
Frequency Characteristics 20 - 20.000 Hz
Channel Separation 23 dB (1 KHz)
Channel Balance 1.5 dB or less
Load Resistance 47 KΩ
Cantilever Aluminum Alloy
Stylus Tip Shape/Radius 0.4 x 0.7 mil Elliptical
Stylus Pressure
1,5 – 2,0 g
Cartridge Weight 6.5g
