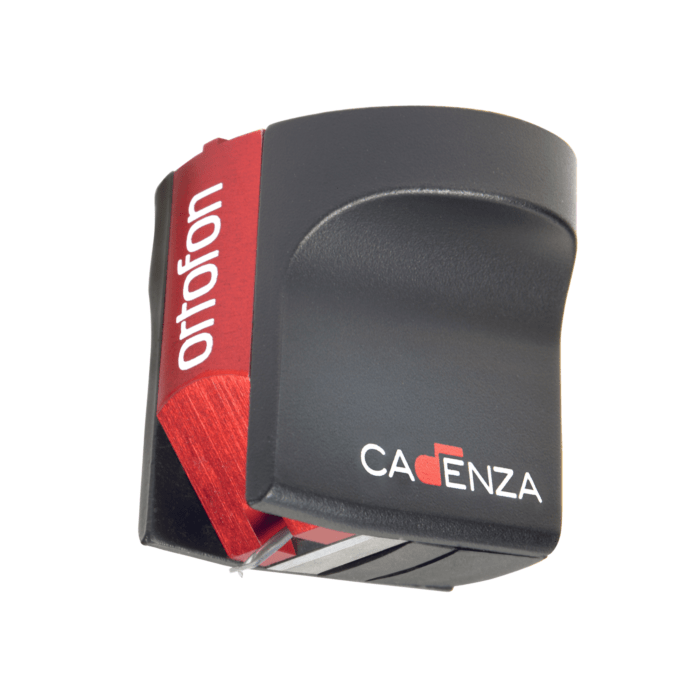

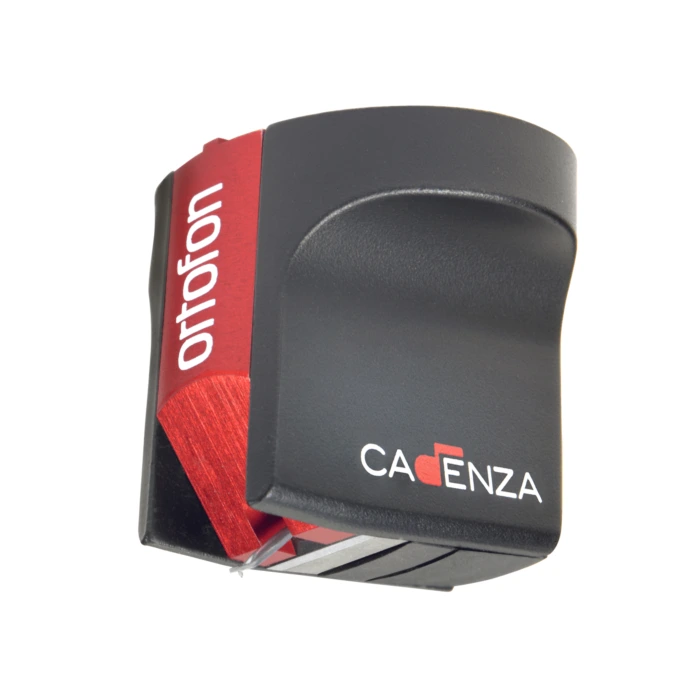

Ortofon Cadenza Red MC Cartridge
Moving Coil cartridges feature an inverted version of the Moving Magnet design. Instead of a magnet sitting on the end of the cantilever between two coils, the coils are attached the cantilever and a magnet is placed near them. Because space within the cartridge at this level is extremely limited, the coils are made from an exceptionally fine wire. The coils tiny size results in a very low output.
Featuring a nude fine line stylus with a cylindrical aluminium cantilever, the Ortofon Cadenza Red is well equipped to get the most from your LP records without breaking the bank. Displaying great purity and precision due to it's 6NX (99.9999%) pure silver wire coils, also features superb channel balance resulting from a revised coil winding process, giving very stable stereo images. Very well detailed reproduction with wide dynamic contrasts, this cartridge will let you hear new aspects of your recordings.
Who is Ortofon?
Ortofon are a Danish manufacturer of high quality phono cartridges, designed to get the very most out of your vinyl collection from a variety of price points. Ortofon cartridges, both Moving Magnet and Moving Coil configuration are commonly found supplied with high quality ProJect turntable models, but Ortofon cartridges sound exceptional with any compatible turntable.
Output Voltage (at 1kHz, 5cm/sec) 450 μV Channel Balance at 1kHz < 1.2dB Channel Separation at 1kHz > 23dB Channel Separation at 15kHz > 15dB Frequency Range (at -3dB) 20 Hz - 50 kHz Frequency Response 20Hz - 20kHz +3 / -1 Tracking Ability at 315Hz Typically 80μm Compliance, Dynamic, Lateral 12μm / mN Stylus Type Nude Fine Line Cantilever Aluminium Stylus Tip Radius r / R 8 / 40 Tracking Force Range 2.2 - 2.7g (22 - 27mN) Recommended Tracking Force 2.5g (25mN) Tracking Angle 20º Internal Impedance / DC Resistance 50Ω Recommended Load Impedance 50 - 500Ω Cartridge Body Material Stainless Steel Aluminium Cartridge Colour Red / Black Cartridge Weight 10.7g
