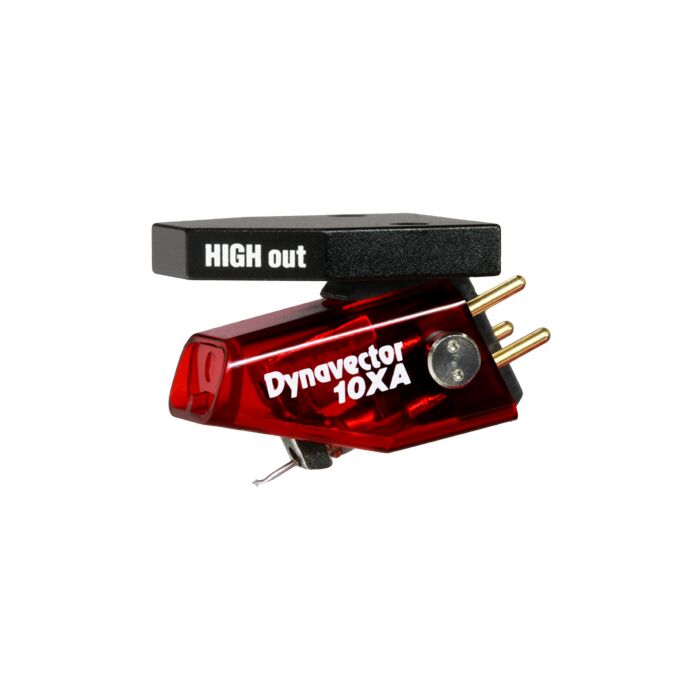

Dynavector 10XA Cartridge

The Dynavector 10X series is a high-output Moving Coil (MC) Cartridge that has been acclaimed worldwide since its release in 1978, amazing the audio industry by unleashing something that was long considered a challenge for MC cartridges.
In both 1978 and 1981, the 10X series was honoured with the Design and Engineering Award at the Chicago CES（Consumer Electronics Show）and has continued to captivate audiophiles around the world with its distinctive red body.

Since its debut, the 10X series has continuously evolved to deliver a better experience for our users. In 2003, a solid aluminium head block was introduced for increased rigidity, providing a better platform to secure the head shell. In 2018, the 10X5 MkII replaced the traditional elliptical stylus tip with a "Shibata III" line contact stylus, improving tracking ability.
Now, in 2025, the 10X series reaches new heights of performance with a newly developed magnetic circuit that incorporates Dynavector's proprietary "Special Magnetic Annealing" technology. The new 10XA model delivers exceptionally smooth and articulate analogue playback, offering a listening experience that goes far beyond what is expected from an entry-level cartridge.

Special Annealing Magnetic Circuit

The magnetic circuit, which is the core of an MC cartridge, uses pure iron that has stable magnetic properties with minimal distortion. Furthermore, by performing special annealing that focuses on optimising the magnetic annealing process, such as annealing temperature, environment, heating duration, and heating/cooling rates, we have succeeded in delivering expansive resonant sound without distortion and unrivalled resolution.

⇒ ... learn more about Special Annealing Magnetic Circuit

10XA-H: The Legendary High Output MC Cartridge

Dynavector's unique coil winding technology made high-output MC cartridges possible. By winding an ultra-fine wire many times around the coil bobbin, the phono cartridge can retain a healthy 2.8 mV output, eliminating the need for a head amplifier or a step-up transformer. It retains the sonic advantages of an MC cartridge while offering the ease of use of an MM cartridge.
Recommended load impedance is 1,000Ω or higher.
Connection to a PHONO input in MM position (47KΩ load) is also possible.

10XA-L: A Low-Output Model that Captures the True Characteristics of an MC

The low-output 10XA-L model offers an output voltage of 0.5 mV, allowing excellent compatibility with a wide range of step-up transformers and head amplifiers. This model lets you fully experience the distinct qualities of MC playback. Recommended load impedance is 100Ω or higher.

Shibata Type III Stylus for Exceptionally High Frequency Performance

To meet the demands of today's wide range of analogue playback systems, the 10XA features a Shibata Type III stylus, known for its superior high-frequency response. The cantilever is made from lightweight, rigid aluminium pipe. This improves groove tracking significantly, enabling higher resolution playback.

Neodymium Magnet and Softened Magnetic Field

This series employs a patented "Softened Magnet" technology developed to reduce distortion and harsh, irritating, edgy sounds caused by rare earth magnets, while still achieving high output from powerful neodymium magnets. By taking advantage of the powerful magnetic force of neodymium magnets, the phono cartridge produces a clean, well-separated sound.

⇒ ... learn more about Flux Damping and Softened Magnetism

Broad Compatibility

The machined aluminium head block ensures a secure, rigid connection to the head shell. With a compliance of 12mm/N and a total weight of 7.5g, the 10XA is compatible with a vast majority of tonearms in the market.

Who is Dynavector?

Dynavector is one of the world’s leading manufacturers of high-performance moving coil cartridges and has been at the top of its game for over four decades. Using their patented magnetic flux damping and softened magnetism mechanisms, Dynavector’s range of cartridges is certainly innovative. Hearing a standard moving magnet cartridge and Dynavector’s moving coil cartridges, you’ll be blown away by the difference in sound.

From their entry-level, MC 10X5 cartridge to the top of the range DRT XV-1t, Dynavector cartridges can help take your listening experience to the next level. Their high-output models are designed to work with MM inputs, perfect for those just starting their upgrade journey in the world of vinyl.

Founded in the mid-1970s by Dr Tominari in Tokyo, Dynavector is committed to delivering the best quality sound from vinyl. As a former physics professor at Tokyo University, Dr Tominari had a lifelong interest in music, and his scientific background helped him design, develop, and produce truly innovative products. This has continued to this day and helped Dynavector become synonymous with great-sounding vinyl.
