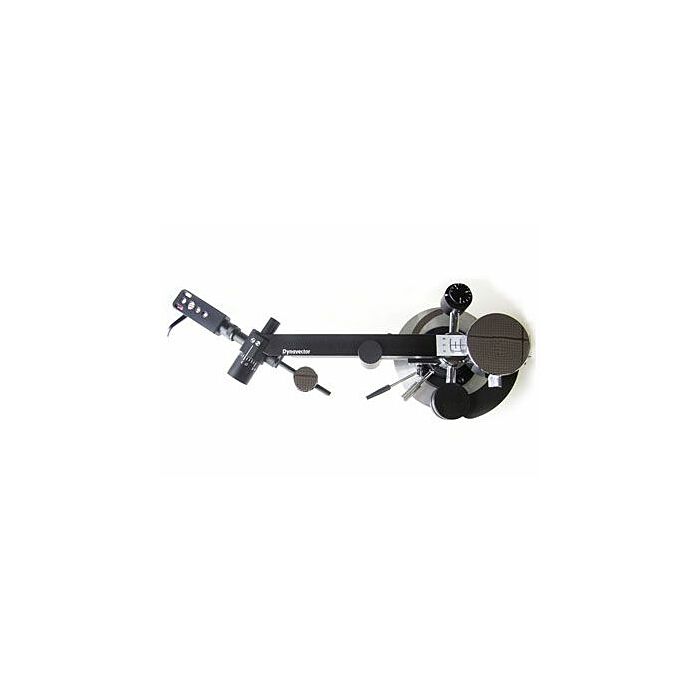

Dynavector DV-507 MKII Tonearm
Free UK Delivery
Dynavector DV-507 MKII Tonearm
The new MKII version of the Dynavector DV 507 tonearm has made its long-awaited debut, building on the strengths of the original DV 507 which has enjoyed the highest reputation among audiophiles world-wide since its appearance in 1984.
- Electro Magnetic Damping System for accurate tracking
- Arm Lift provided
- Easy Height Adjustment
- Dynamic Balance Tracking Force Adjuster
- Dynamic Damper installed in sub arm
As it is a bi-axis inertia controlled tonearm the DV 507, no matter the type of cartridge can trace the music signal grooves cut in the recording with extreme accuracy. The DV 507 also provides superb trackability on warped recordings. Resolution and musical detailing are quite remarkable.
A tone arm is required to operate in two important ways so as to ensure that the cartridge can reproduce faithfully the signal from the record groove.
First, there is the need to support the cartridge so that the transfer of the cantilever motion accurately mirrors the audio signal.
Secondly, it must maintain an excellent tracking ability for warped records since few records are perfectly flat.
These requirements can conflict with each other. However, the bi-axis tonearm provides an effective solution to the problem.
To make the DV 507 MKII compatible with a wide variety of turntables, the overall length and height of the arm have both been reduced compared to the earlier versions. The DV505 and DV501 have enjoyed an excellent reputation in the European audio market since being awarded the Design and Engineering Award at C.E.S. Chicago in 1977,1982 and 1985.
The DV507MKII has important sonic improvements as well as being easier to install and use. It includes all of the technology of our tonearm design developed since the DV505 and 501.
Who is Dynavector?
Dynavector is one of the world’s leading manufacturers of high performance moving coil cartridges and has been at the top of its game for over four decades. Using their patented magnetic flux damping and softened magnetism mechanisms, Dynavector’s range of cartridges are certainly innovative. Hearing a standard moving magnet cartridge and Dynavector’s moving coil cartridges you’ll be blown away by the difference in sound.
From their entry-level, MC 10X5 cartridge to the top of the range DRT XV-1t, Dynavector cartridges can help take your listening experience to the next level. Their high output models are designed to work with MM inputs, perfect for those just starting their upgrade journey in the world of vinyl.
Founded in the mid-1970s by Dr Tominari in Tokyo, Dynavector is committed to delivering the best quality sound from vinyl. As a former physics professor at Tokyo University, Dr Tominari had a lifelong interest in music and his scientific background helped him to design, develop and produce truly innovative products. This has continued to this day and helped Dynavector become synonymous with great-sounding vinyl.
Type | Bi-Axis inertia controlled Dynamic and Eddy Current Damping Dynamic Balance type tonearm |
Overall length | 306mm. With headshell: max 326 mm |
Effective length | 241mm (i.e. tonearm pivot point to cartridge stylus point) |
Overhang | 15mm |
Offset angle | 21.5 degree |
Height | 59mm lifts up to 92mm |
Height adjustment range | 39mm-72mm at sub-arm centre |
Depth | 36mm without connecting cable |
Optimum cartridge weight | 15-35 grams, including headshell |
Horizontal tracking angle error | -1.1 degree - +2.2 degree , 0 degree at inner band of record, 2.2 degree at outside |
Tracking force adjustment range | 0-38 grams by 0.2 grams step |
Sensitivity | Horizontal: less than 50 grams, Vertical: less than 40 grams |
Net weight | 1,380 grams |
Output connection | 5P connector |
Headshell connection | EIA standards 4 Pin connector |
UK Delivery
Providing your item is in stock, the order is usually dispatched within 24 hours. Postage and packing is completely free for orders over £99*. Out of stock items will be dispatched as soon as they become available, which can take between 4 to 21 days
UK Delivery orders are sent via our couriers' DPD Local on a next-day-delivery service and usually take between 1 and 3 days.
Local Delivery
Certain manufacturers disallow mail order for their products, however a local delivery may be possible.
We offer a local delivery service for a large number of our products. After your order has been placed, a member of the Hifi Gear team will contact you to arrange a convenient date and time for your local, personal delivery.
Click & Collect
We offer a free ‘Click & Collect’ service on all items. As soon as your order has been completed and is ready for collection a member of our team will be in contact with you. Orders can be collected from our store at 11 King Street, Hereford, HR4 9BW.
Please use this link to find more detailed delivery information or contact us for more details
-
Dynavector DRT XV-1S MC Cartridge£4,290.00
-

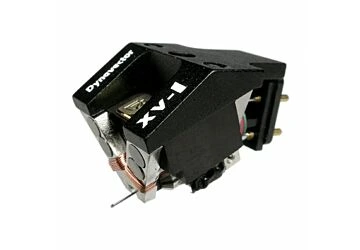

Dynavector DRT XV-1s Mono Cartridge£4,295.00
-
